USB Güçlendirici Gerilim Regülatörü (5V to 3.3V-24V)

USB Güçlendirici Gerilim Regülatörü (5V to 3.3V-24V) (RD100237)

Fiyat : ₺98,30  + KDV
KDV Dahil : ₺117,97
Stok Miktarı : 5
₺22,72 'den başlayan taksitlerle
​USB Güçlendirici Gerilim Regülatörü (5V to 3.3V-24V)

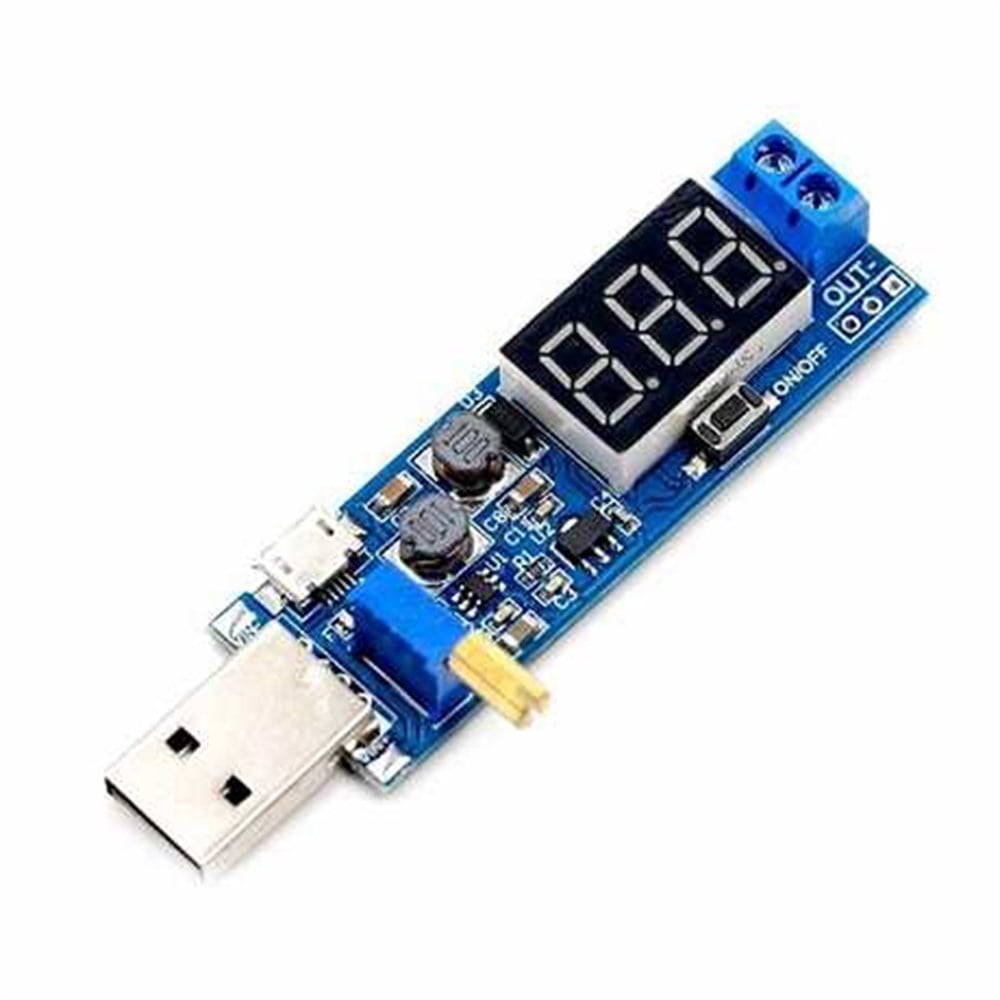

USB boost/buck power supply module, powered by USB, adjust potentiometer to get the required voltage.

Features:

  • One button to turn off the output;
  • Supply ON/OFF display screen;
  • Support low power mode;
  • Support sleep mode;
  • Support both standard USB and Micro USB and pads input voltage;
  • Potentiometer with rotating handle.

Parameters:

  • Input voltage: DC 3.5-12V;
  • Output voltage:DC 1.2-24V;
  • Output power:
-Input 1.2-2V,output power within 2W;
-Input 2V-20V,output power within 3W;
-Input 20V-24V,output power with in 2.5W;
  • Display:3Bit digital tube display;
  • Size:80*20*14mm.

Use steps:

  • Input voltage from Standard USB or Micro USB or ‘VIN+’ and ‘VIN-’;
  • Turn ON display screen;
  • Adjust potentiometer to get the required voltage;
  • Connect load.

Application:

  • Ordinary power supply;
  • Battery charger;
  • LED drive power;
  • Instrument voltage display;
  • Test meter;
  • Circuit test;
  • Power conversion.
